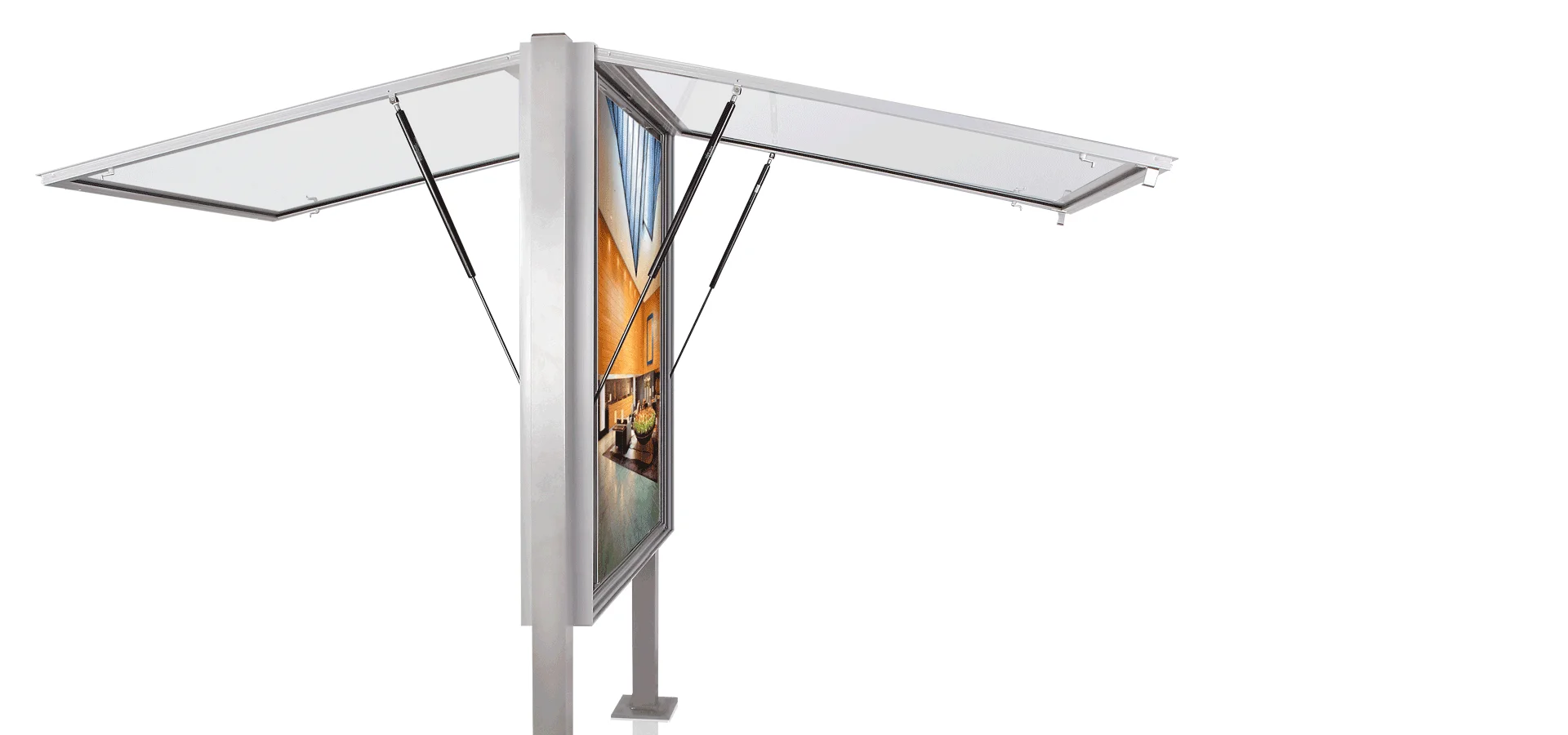

11 aluminum construction made of torsion-resistant, angular profiles rotating wing with concealed revolving belts or folding wings with gas struts glazing with 5 mm ESG in EPDM gaskets and glazing system safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame concealed ventilation against windscreen fogging, fitted with insect protection mesh screens magnetic plate in the centre, powder-coated, white anodised silver profile surface, E6/ EV1 optionally, with lighting and labeling panel made of acrylic glass or backlighting Model 11Display cases Simple display boxes for in-house memos – Suitable for indoor use only housing made of galvanised steel sheet in RAL 9016 traffic white or RAL as requested powder-coated. Doors hinged on the right, made of single pane safety glass 5 mm with cylinder cam lock. Supplied with 6 pcs magnet clamps (DINA3), 9 pcs magnet clamps (DIN A2). Aluminium construction made of torsion-resistant, angular profiles; rotary wing with concealed swivel belts or folding wing with gas struts; glazing with 5 mm ESG in EPDM gaskets and glass strip system; safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks); EPDM stopper seal between wing and frame; concealed ventilation against window fogging, provided with insect protection mesh screen; magnetic clamp plate, powder-coated, white; rear wall with 4 grooves for flush wall mounting; anodised silver profile surface, E6/ EV1; with optional lighting and name panel made of acrylic glass or background lighting. Display boxes (125 mm installation depth on both sides) aluminum construction made of torsion-resistant, angular profiles rotating wing with concealed revolving belts or folding wings with gas struts glazing with 5 mm ESG in EPDM gaskets and glazing system safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame concealed ventilation against windscreen fogging, fitted with insect protection mesh screens magnetic plate in the centre, powder-coated, white anodised silver profile surface, E6/ EV1 optionally, with lighting and labeling panel made of acrylic glass or backlighting Variants Display boxes (30 mm installation depth) aluminum construction made of torsion-resistant, angular profiles rotary wing with concealed hinges glazing with 3 mm acrylic glass (4 mm ESG up to A3 size, available at the same price) in EPDM seal, optionally replaceable safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting anodised silver profile surface, E6/ EV1 use in protected outdoor areas only Display boxes (35 mm installation depth) aluminum construction made of torsion-resistant, angular profiles rotary wing with concealed revolving belts or optional folding wings with upright poles glazing with 4 mm ESG in EPDM gasket, replaceable safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting anodised silver profile surface, E6/ EV1 optionally with lighting and light-proof screen Display boxes (40/50 mm installation depth) flush-mounted front with surrounding passe-partout in standard black, other RAL tones available on request concealed aluminium construction made of torsion-resistant, angular profiles rotating or folding wings with concealed swivel belts safety lock from the bottom or from the side EPDM stopper seal between wing and frame concealed ventilation against windscreen fogging magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting anodised silver profile surface, E6/ EV1 with optional lighting Display boxes (45 mm installation depth) aluminum construction made of torsion-resistant, angular profiles rotating wing with concealed revolving belts or folding wings with gas struts glazing with 4 mm ESG in EPDM gasket, replaceable safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting with optional lighting and labeling panel made of acrylic glass anodised silver profile surface, E6/ EV1 Display boxes (61 mm installation depth) aluminum construction made of torsion-resistant, angular profiles folding wing with concealed swivel belts and gas struts glazing with 4 mm ESG in EPDM seal safety lock with a pressure cylinder lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame ventilation against windscreen fogging in the rear wall magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting with optional lighting and labeling panel made of acrylic glass anodised silver profile surface, E6/ EV1 Display boxes (65 mm installation depth) aluminum construction made of torsion-resistant, angular profiles rotating wing with concealed revolving belts or folding wings with gas struts glazing with 5 mm ESG in EPDM gaskets and glazing system safety lock with a cylinder cam lock (lock side > 700mm = 2 locks) EPDM stopper seal between wing and frame concealed ventilation against windscreen fogging, fitted with insect protection mesh screens magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting with optional lighting and labeling panel made of acrylic glass anodised silver profile surface, E6/ EV1 Display boxes (110 mm installation depth) aluminum construction made of torsion-resistant, angular profiles rotating wing with concealed revolving belts or folding wings with gas struts glazing with 5 mm ESG in EPDM gaskets and glazing system safety lock with a cylinder cam lock (lock side > 700 mm = 2 locks) EPDM stopper seal between wing and frame concealed ventilation against windscreen fogging, fitted with insect protection mesh screens magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting anodised silver profile surface, E6/ EV1 optionally, with lighting and labeling panel made of acrylic glass or backlighting Display boxes (140 mm installation depth on one side/180 mm installation depth on both sides) flush-mounted front with surrounding passe-partout in standard black, other RAL tones available on request concealed aluminium construction made of torsion-resistant, angular profiles folding wing with concealed swivel belts and gas pressure openers safety lock on the bottom and multiple interlock EPDM stopper seal between wing and frame magnetic plate, powder-coated, white rear wall with 4 grooves for flush wall-mounting (for one-side model only) anodised silver profile surface, E6/ EV1 with optional lighting or background lighting Display boxes (planked stainless steel) all variants (external installation depth 30 mm) can be planked with V2A or V4A due to special gluing and edge technology can be continuously used in the external and internal area models comply with the relevant standard optionally, also available as purely stainless steel construction Downloads Modell 11 Schaukasten (400 KB) Model 11 Display cases (400KB) Katalog DE (11 MB) Catalogue EN (11 MB) Catalogue FR (6,7 MB)
